OEM DAM073M Shaft - Replacement parts for DAM005M bearing components
It is suitable for industries such as mining, coal washing, and metallurgy. It can adapt to the transportation needs of slurries with different concentrations and abrasiveness, and is a key spare part to ensure the stable operation of slurry pumps.
MATERIAL:
Jch-Tiktop 6/4-AH(R) slurry pump bearing assembly is equipped with a large-diameter shaft DAM073M. Its short overhang design minimizes deflection and vibration, thereby extending the bearing service life; only four through bolts are needed to fasten the cartridge-type bearing housing to the slurry pump frame.
Core Transmission Component of Slurry Pump - 45# Steel Shaft: Strong, Durable and Suitable for Heavy-Duty Working Conditions
Product Overview: Core of Transmission, Bearing Pump Power

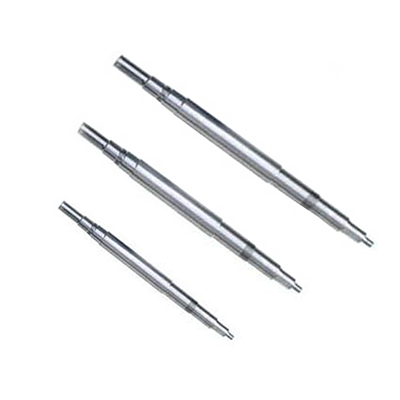

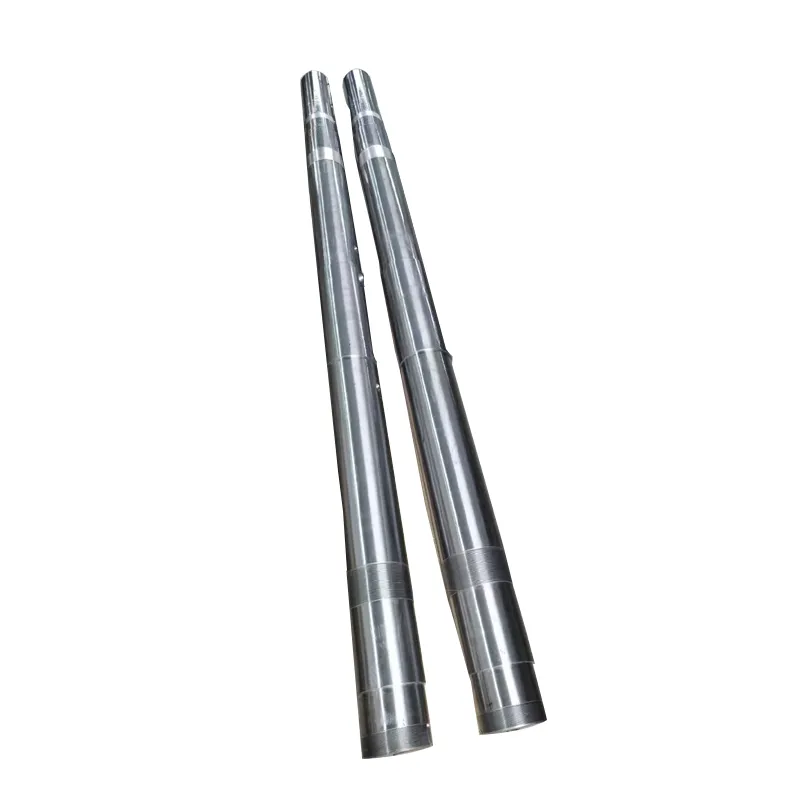

This product is a 45# steel shaft dedicated to slurry pumps. It is the core component for pump power transmission, directly connecting the motor and impeller, and bears the torque and radial load when conveying high-concentration slurry. Made of high-quality 45# carbon structural steel, it undergoes quenching and tempering treatment (quenching + high-temperature tempering) and precision machining. It has high strength, high toughness and excellent wear resistance, and can be adapted to various medium and heavy-duty slurry pump models to meet the harsh working conditions of mining, metallurgy, coal, building materials and other industries.
Core Advantages: 45# Steel Material Endows Shaft Components with Excellent Performance
High-Strength Bearing, Excellent Torsion Resistance
After quenching and tempering treatment, the tensile strength of 45# steel can reach more than 600MPa, and the yield strength is ≥355MPa. Compared with ordinary carbon steel shafts, the torsional stiffness is increased by more than 30%. When conveying slurry containing large particles of sand and gravel, it can effectively avoid the bending or fracture of the shaft body due to excessive torque, ensuring the continuous and stable operation of the pump.
Precision Machining, High Fitting Accuracy

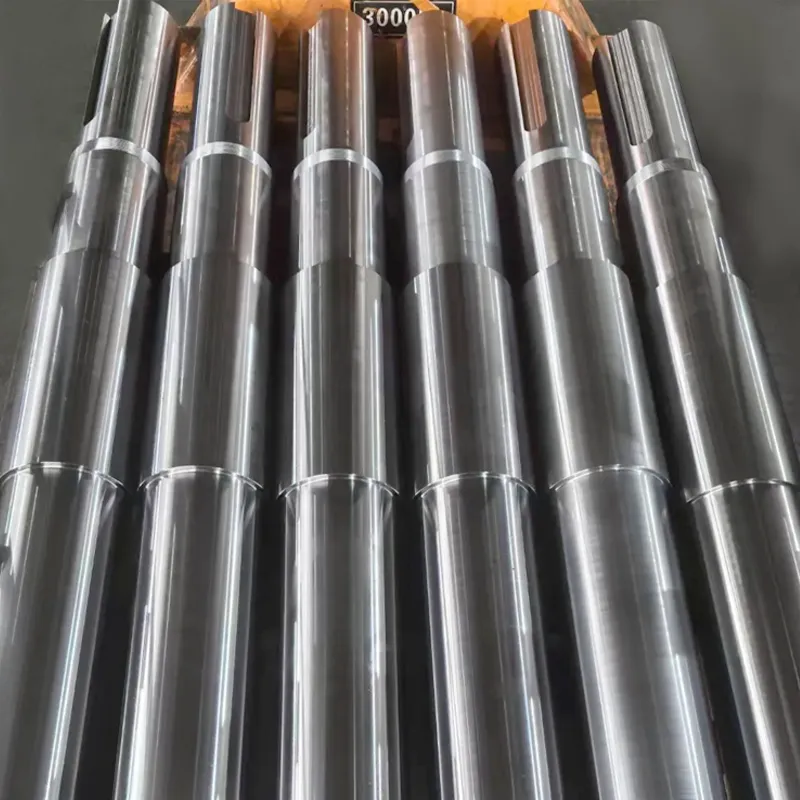

CNC lathes and grinders are used for precision machining. The journal tolerance is controlled at IT6-IT7 level, and the surface roughness Ra ≤ 0.8μm. The fitting clearance with bearings and impellers is precise, which reduces vibration and noise during operation, reduces wear between components, and prolongs the service life of the entire pump unit.
Good Toughness, Strong Impact Resistance
The elongation after fracture of 45# steel is ≥16%, and the reduction of area is ≥40%, which has excellent toughness. When the slurry pump starts, stops or the flow rate of the conveying medium fluctuates, it can effectively absorb the impact load, avoid the shaft body cracking caused by instantaneous impact force, and adapt to the dynamic load changes under complex working conditions.
Easy Machinability, Flexible Customization

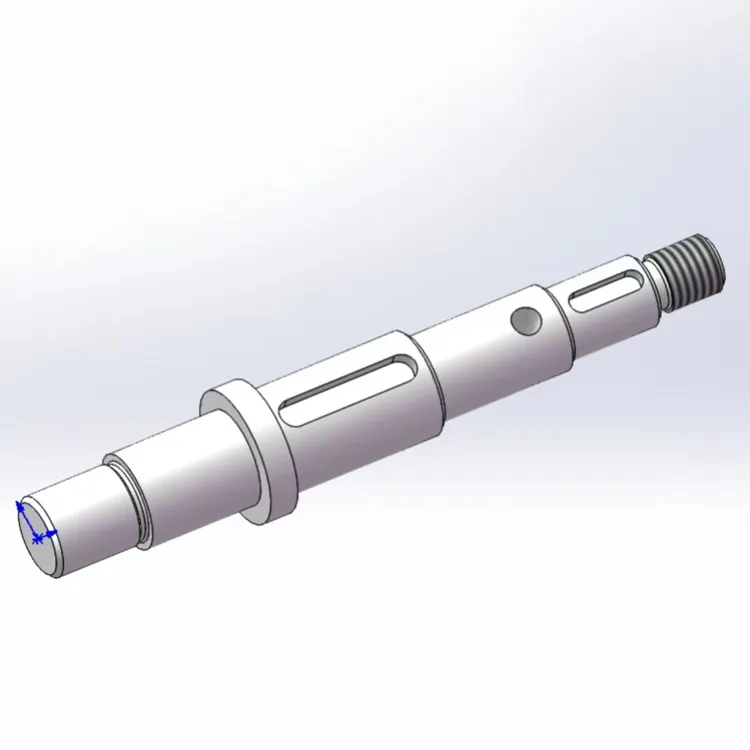

45# steel has good cutting performance, and can be customized with keyways, threads, steps and other structures according to customer needs to meet the assembly requirements of different types of slurry pumps. At the same time, the surface can be subjected to strengthening treatments such as chrome plating and nitriding to further improve wear resistance and corrosion resistance.
| type | 45#steel |
| OEM Part No. | B073M |
| Part No. | TKB073M |
| Matched | all pump models |
