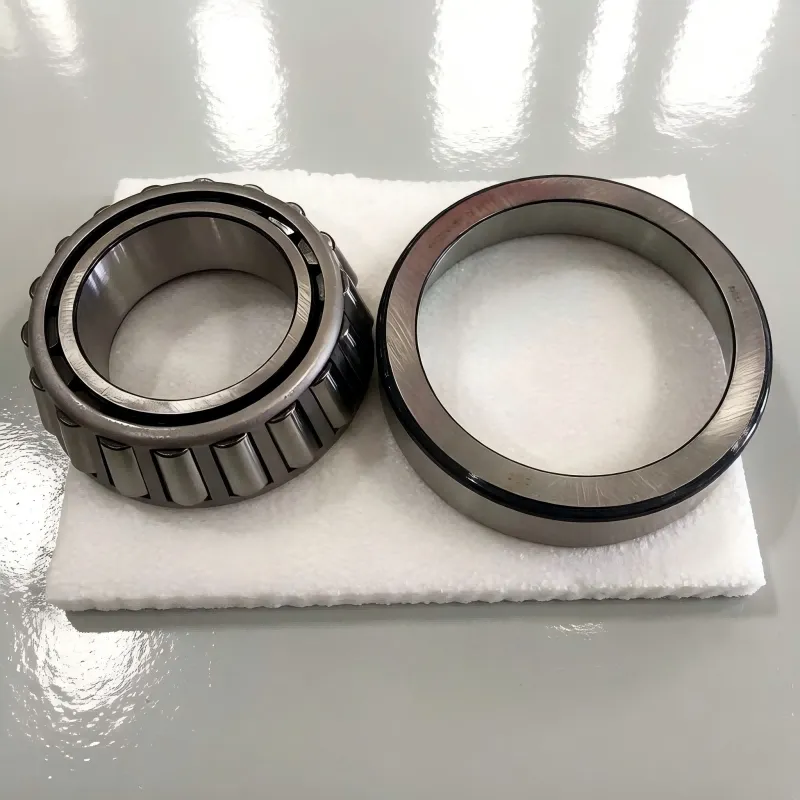

Slurry Pump Accessory: Metal Bearing (Professional Version)

Product Overview

Core Advantages

High-Quality Metal Material, Strong, Tough and Wear-Resistant

Selected high-quality metal raw materials undergo professional heat treatment processes, featuring high hardness, excellent wear resistance and outstanding fatigue strength. It can effectively resist friction and wear under high-load operation as well as indirect wear caused by slurry media, maintaining structural integrity and avoiding failure during long-term use, with a service life far exceeding that of bearings made of ordinary materials.

Strong Structural Adaptability, Stable Operation

Strictly matching the assembly specifications of the Jch-Tiktop 6/4-AH(R) slurry pump, the fit clearance with the 45# steel shaft is precisely controllable. Complying with the transmission requirements of the short overhang design, it can minimize vibration and impact during operation, ensure the coaxiality of the pump shaft during high-speed rotation, avoid component wear caused by wobbling, and enhance the operational stability of the entire pump unit.

Precision Machining Process, High Fit Accuracy

Manufactured using precision machining equipment such as CNC grinders, the inner and outer ring tolerances of the bearing are controlled at a high-precision level, with a surface roughness of Ra≤0.8μm. It fits closely with the journal and bearing housing during assembly, featuring low rotational resistance, which can effectively reduce operating noise, minimize friction and wear between components, and indirectly extend the service life of key parts such as the 45# steel shaft and impeller.

Excellent Load-Bearing Capacity, Suitable for Heavy-Duty Conditions

The metal material endows the bearing with superior load-bearing performance, capable of stably withstanding radial loads and impact loads during high-concentration slurry transportation. Its tensile strength and torsion resistance perfectly match those of the 45# steel shaft. Under complex working conditions involving the transportation of slurry containing large particles of sand and gravel, it can effectively prevent bearing damage caused by excessive loads, ensuring the continuous and efficient operation of the pump unit.

Easy Installation, Low Maintenance Cost

The structural design is compatible with the assembly requirements of the cylindrical bearing housing. Combined with the fixing method of four through bolts, it enables quick installation and replacement. The stability of the metal material extends the maintenance cycle, eliminating the need for frequent inspections and overhauls, which can reduce downtime for maintenance, lower overall operating costs, and meet the efficient operation and maintenance needs of industrial scenarios.

Product Parameters

Product Name:Bearing

Purpose: Pump shaft rotation support, friction reduction, load bearing

Compatible Pump Models: Jch-Tiktop 6/4-AH(R) slurry pump, various medium and heavy-duty slurry pumps equipped with 45# steel shafts

Compatible Shaft Types: Large-diameter shaft DAM073M and 45# steel shafts of the same specification

Machining Precision: Inner and outer ring tolerance: High-precision grade; Surface roughness: Ra≤0.8μm

Core Characteristics: High wear resistance, high load-bearing capacity, low vibration, suitable for heavy-duty conditions

Applicable Working Conditions: High-concentration slurry, large-particle media, long-term continuous operation, high-load industrial scenarios
